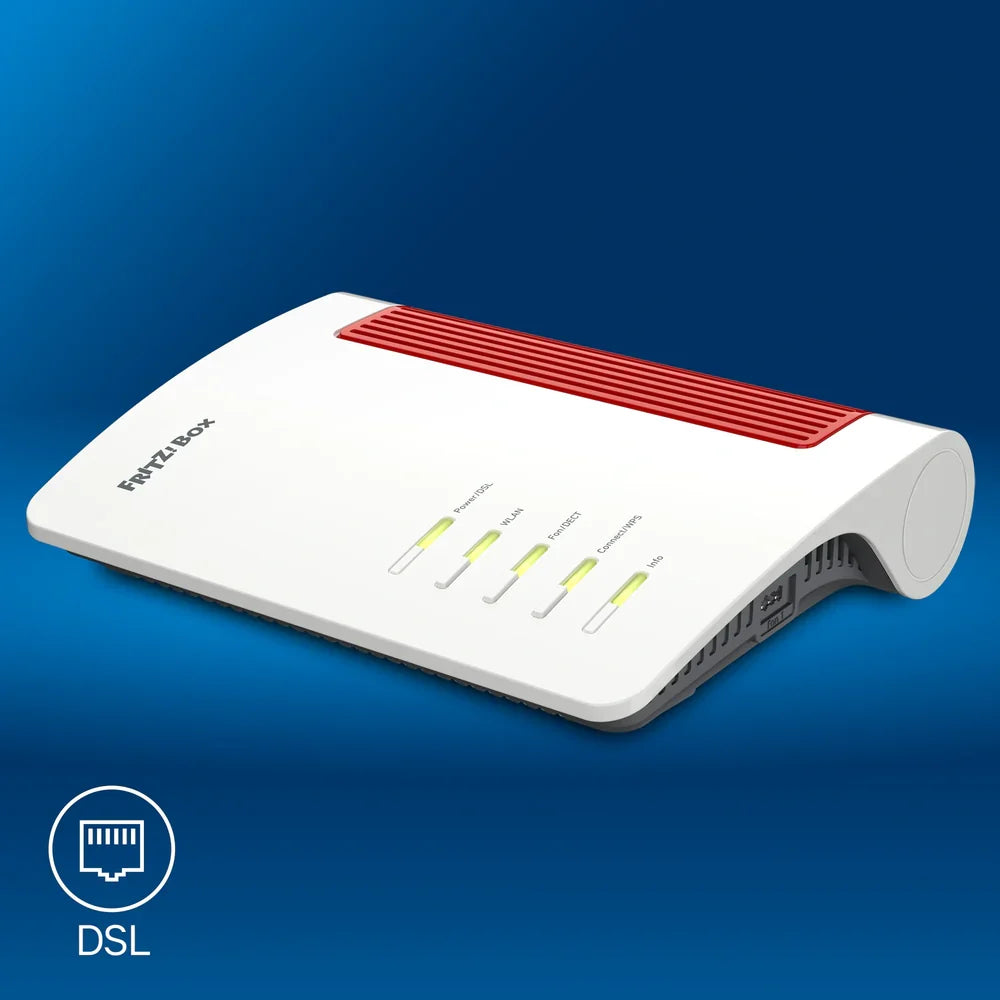

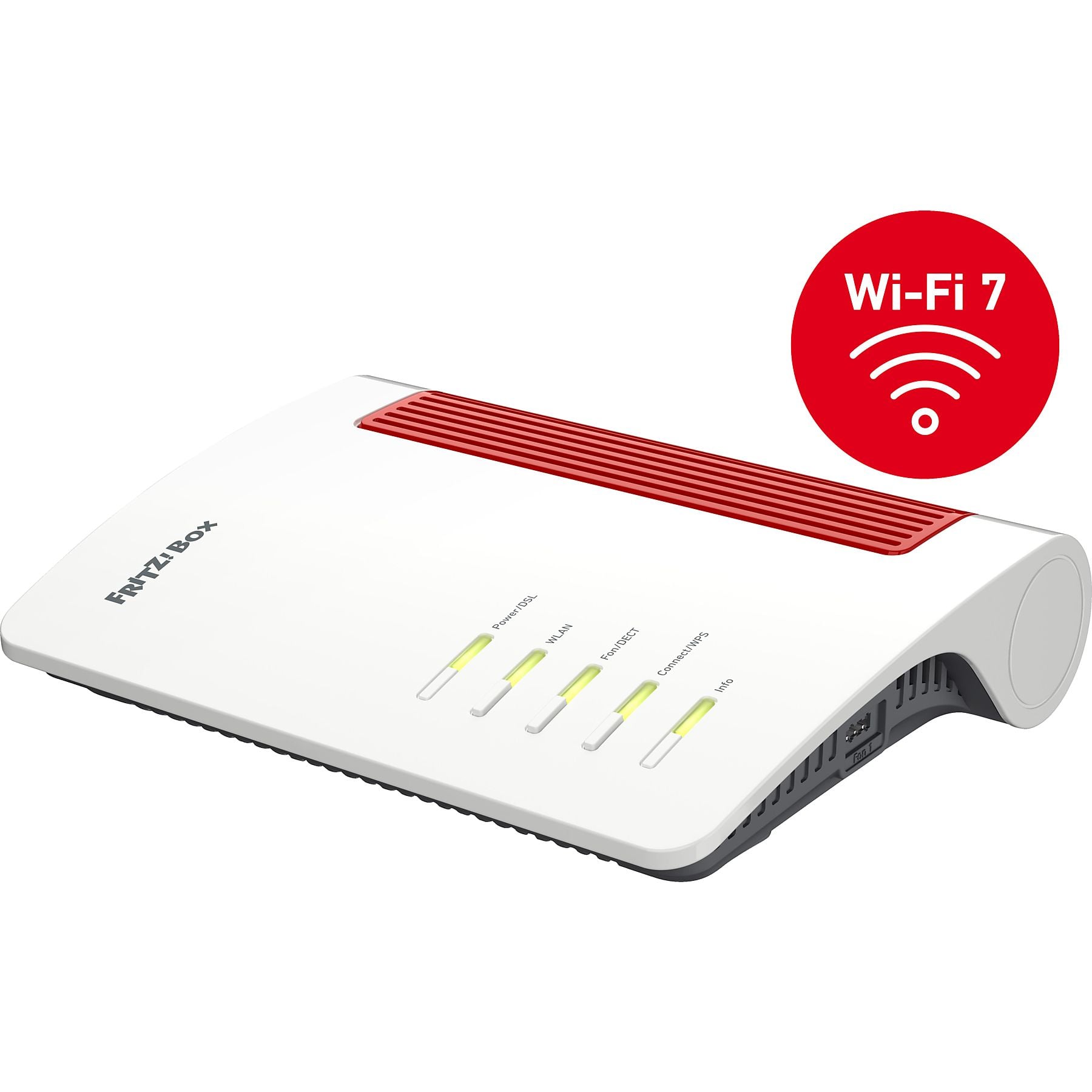

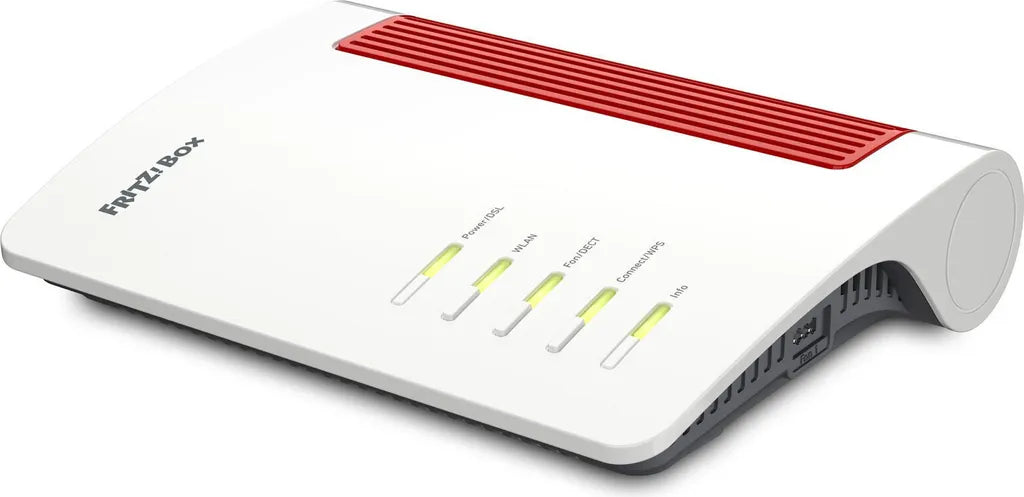

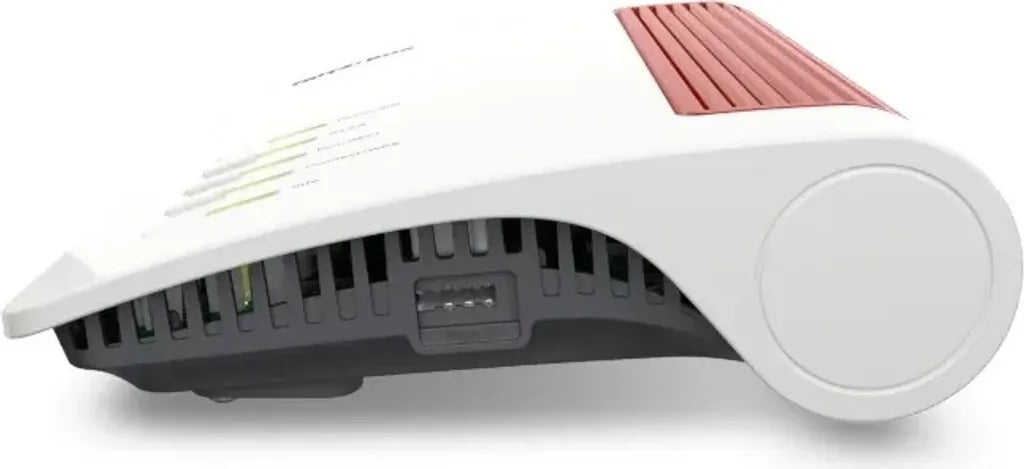

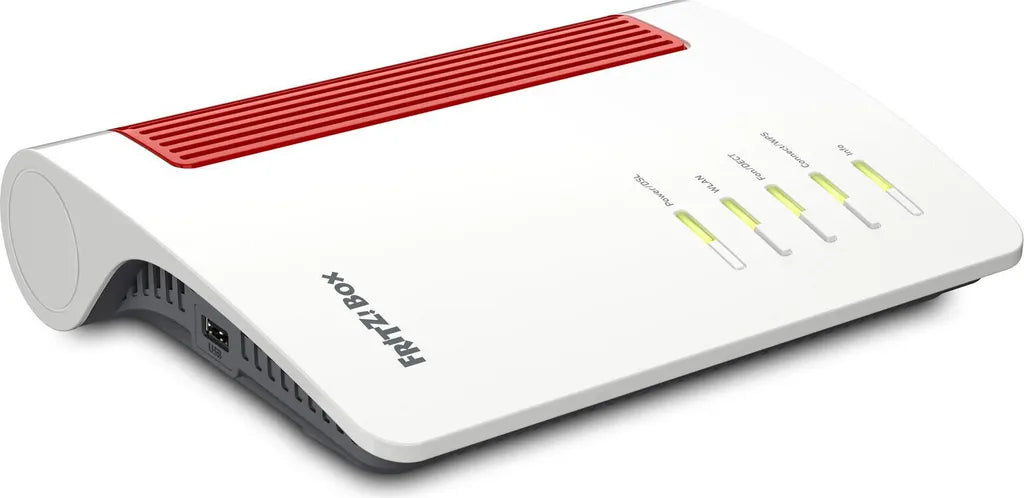

FRITZ!Box 7690 – High Speed with Wi-Fi 7 and VDSL Supervectoring
The FRITZ!Box 7690 is your powerful hub for DSL, Wi-Fi, and Smart Home. With Wi-Fi 7, you achieve impressive speeds of up to 5,760 + 1,376 Mbit/s – perfect for 4K/8K streaming, online gaming, and working from home.
Your advantages:

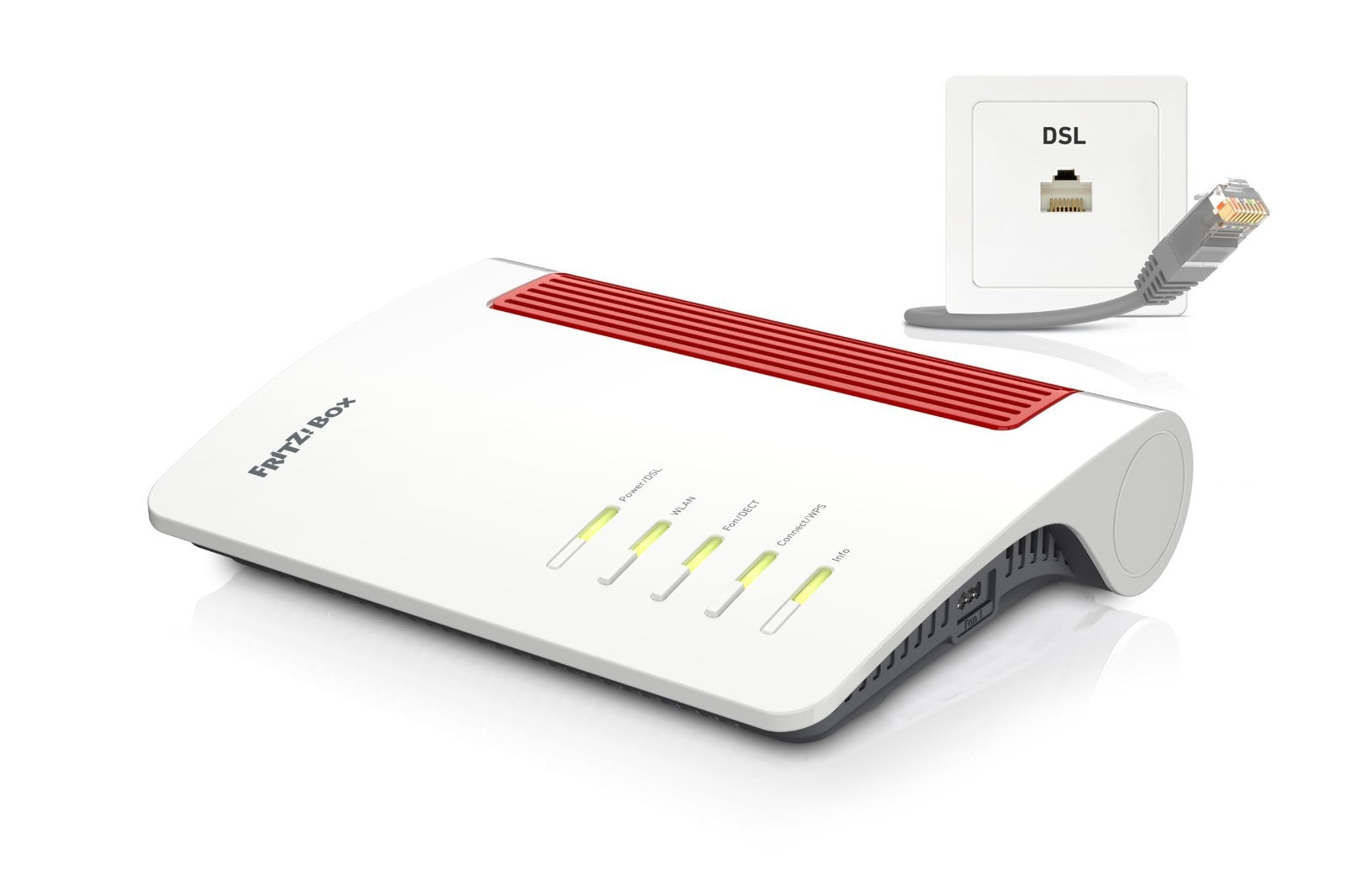

DSL up to 300 Mbit/s thanks to VDSL supervectoring (also usable with fiber optic/cable modem)
2.5 Gigabit WAN + 2x Gigabit LAN for lightning-fast wired connections
Intelligent Wi-Fi Mesh – expand your network with FRITZ!Repeaters

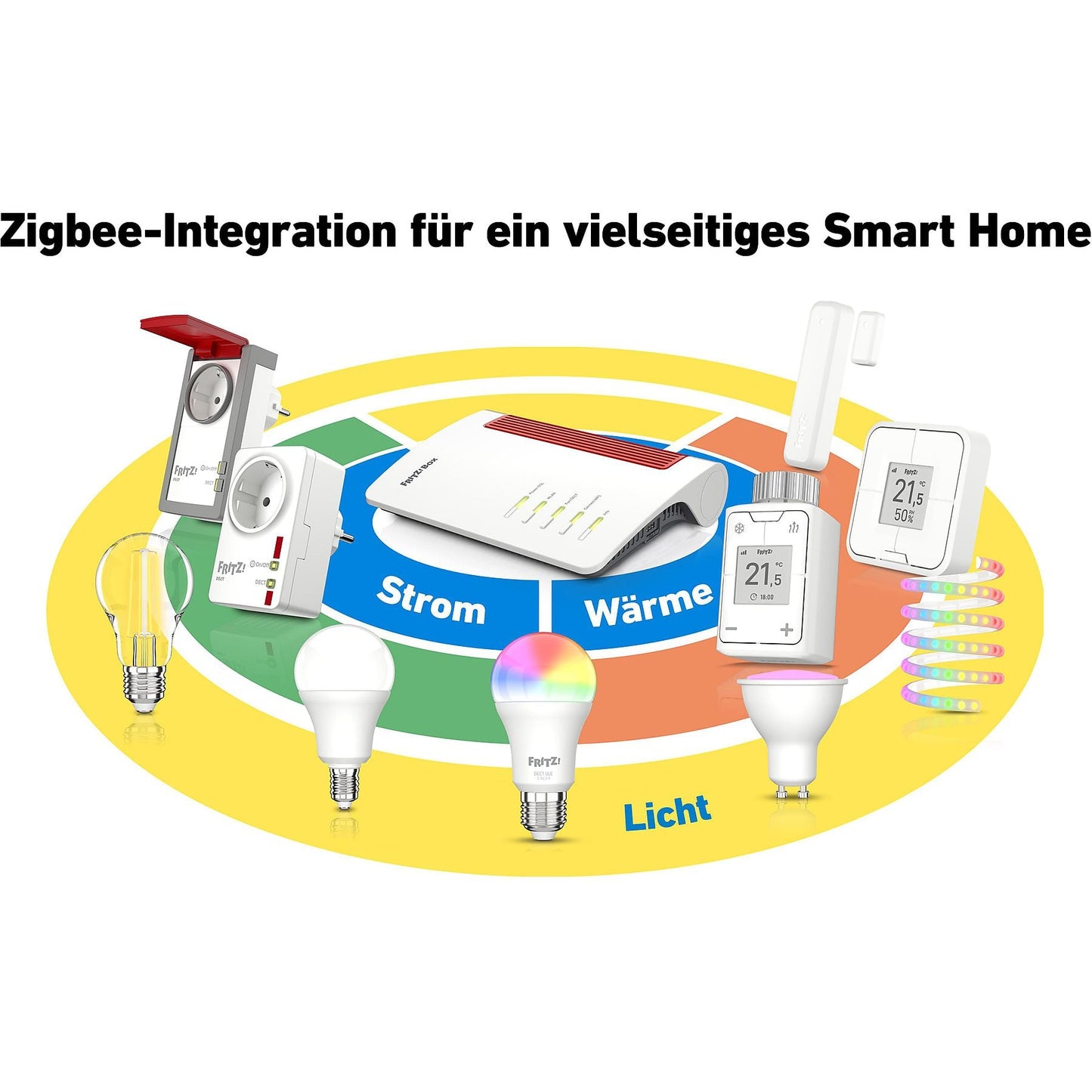

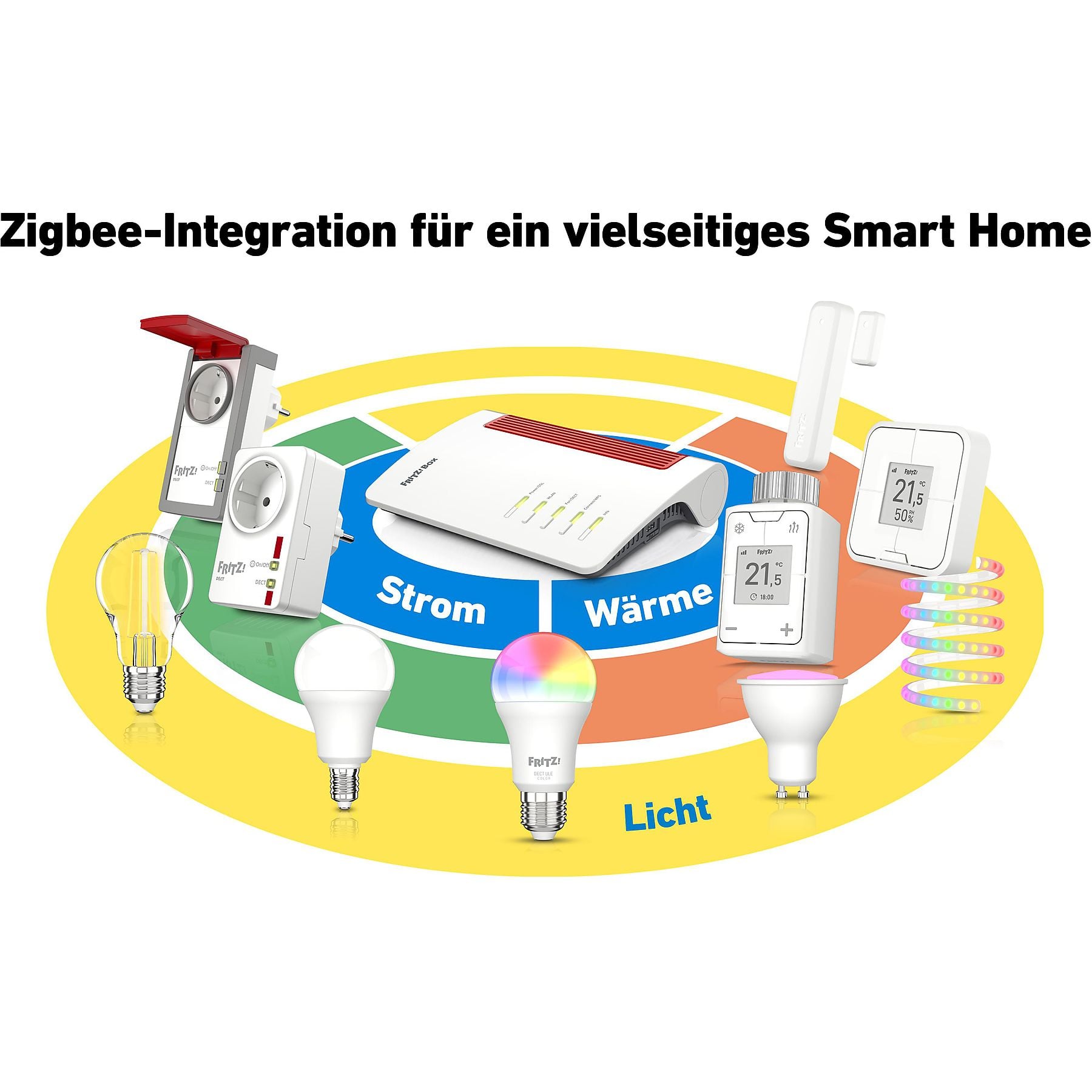

Smart Home Hub for DECT and Zigbee devices (lights, heating, outlets)
Complete telephone system with DECT base, answering machine & HD telephony
Security: Firewall, WPA3, VPN with WireGuard, parental control
Free updates (FRITZ!OS) and high energy efficiency
Scope of delivery: FRITZ!Box 7690, power supply, DSL cable (4 m), LAN cable (1.5 m), TAE/RJ11 adapter, installation guide
Get the FRITZ!Box 7690 – Future-proof for your home network!
Technical Data
Area
Details
Model
AVM FRITZ!Box 7690
DSL Support
ADSL2+, VDSL, Supervectoring 35b (up to 300 Mbit/s)
Wi-Fi Standard
Wi‑Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be)
Max. Wi-Fi Data Rate
up to 5,760 Mbit/s (5 GHz) + 1,376 Mbit/s (2.4 GHz)

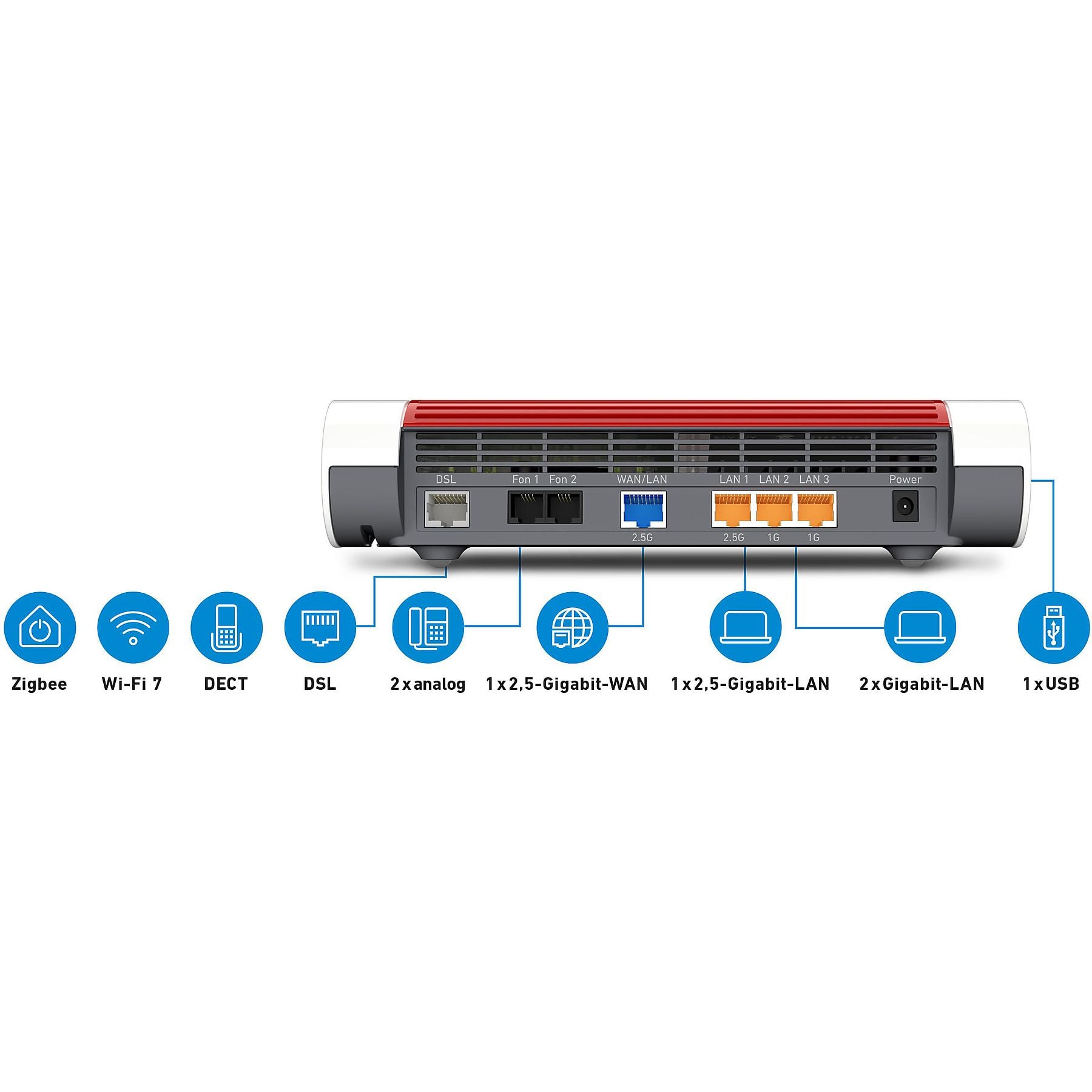

LAN Ports
1x 2.5 GBit/s, 2x 1 GBit/s
WAN Port
2.5 Gigabit (for fiber optic/cable modem)
Wi-Fi Mesh
Yes, intelligent FRITZ! Mesh
Encryption
WPA3 / WPA2, DECT encryption
Smart Home
DECT base + integrated Zigbee gateway
Telephony
DECT base for up to 6 cordless phones, answering machine, HD telephony, fax
USB Ports
Media server, NAS function
VPN
WireGuard, IPSec
Remote Access
MyFRITZ! (free)
Update Function
Auto-update (free)
Power Consumption
energy-efficient (reduction when not in use)
Scope of delivery
FRITZ!Box 7690, power supply, 4 m DSL cable, 1.5 m LAN cable, TAE/RJ11 adapter, installation guide
