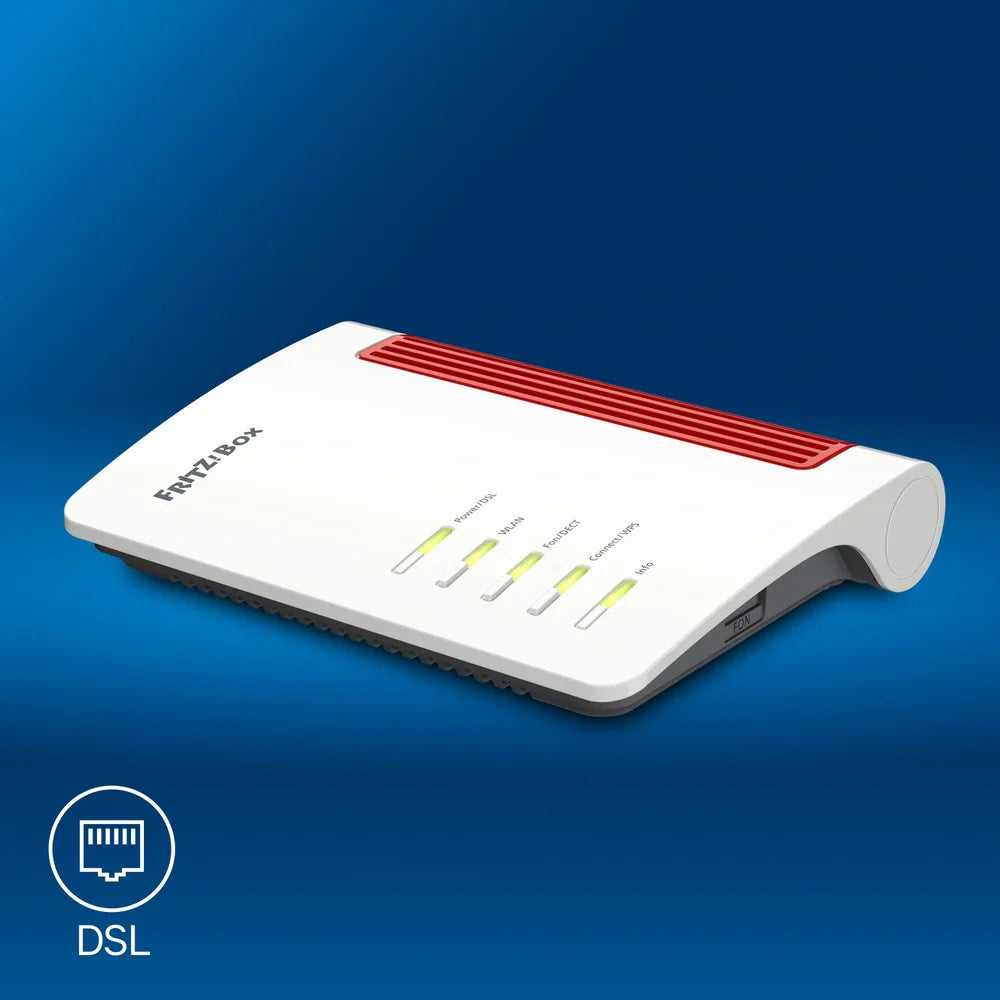

FRITZ!Box 7530 AX – Perfect entry into the FRITZ! home network at an attractive price
The FRITZ!Box 7530 AX is the ideal router for DSL connections up to 300 MBit/s (including Supervectoring). With Wi‑Fi 6 (up to 2,400 MBit/s) and intelligent WLAN Mesh, it ensures stable, fast Wi-Fi – even when many devices are online simultaneously. The integrated DECT base station enables comfortable telephony (up to 6 cordless phones) and smart home control (radiator thermostats, smart plugs). In addition, it features a full-fledged telephone system with answering machine, parental control, firewall, VPN (WireGuard/IPSec) and MyFRITZ! remote access.
Your advantages:
-
DSL up to 300 MBit/s – including Supervectoring, also usable as a WAN router for fiber/cable
-
Wi‑Fi 6 (2,400 MBit/s) – 5 GHz: 1,800 MBit/s, 2.4 GHz: 600 MBit/s, 3×3 MIMO
-
WLAN Mesh – seamless, intelligent home network with FRITZ!Repeaters
-
DECT base station – for up to 6 cordless phones (e.g. FRITZ!Fon) and Smart Home (FRITZ!DECT)
-
Telephone system – analog telephone connection, IP telephony, 5 answering machines, fax, HD telephony
-
4 × Gigabit LAN + USB 2.0 (for storage, printer, mobile broadband stick)
-
Security – Firewall, parental control, WPA3, VPN (WireGuard/IPSec)
-
FRITZ!OS – easy operation via browser or app, free updates
-
5 years manufacturer's warranty & best energy efficiency (average power consumption only 6 W)
Scope of delivery: FRITZ!Box 7530 AX, power supply, DSL cable (4 m), LAN cable (1.5 m), TAE/RJ11 adapter, installation guide
Enter the world of FRITZ! – with the FRITZ!Box 7530 AX at an attractive price!
Technical data
| Area | Details |
|---|---|
| General | |
| Product type / Model | FRITZ!Box 7530 AX | VDSL/ADSL router with Wi‑Fi 6 |
| Manufacturer | AVM Computersysteme Vertriebs GmbH, Berlin |
| Item number | 20002930 |
| Warranty | 5 years manufacturer's warranty |
| Dimensions (W×H×D) | 200 × 45 × 152 mm (wall mounting possible) |
| DSL / Internet | |

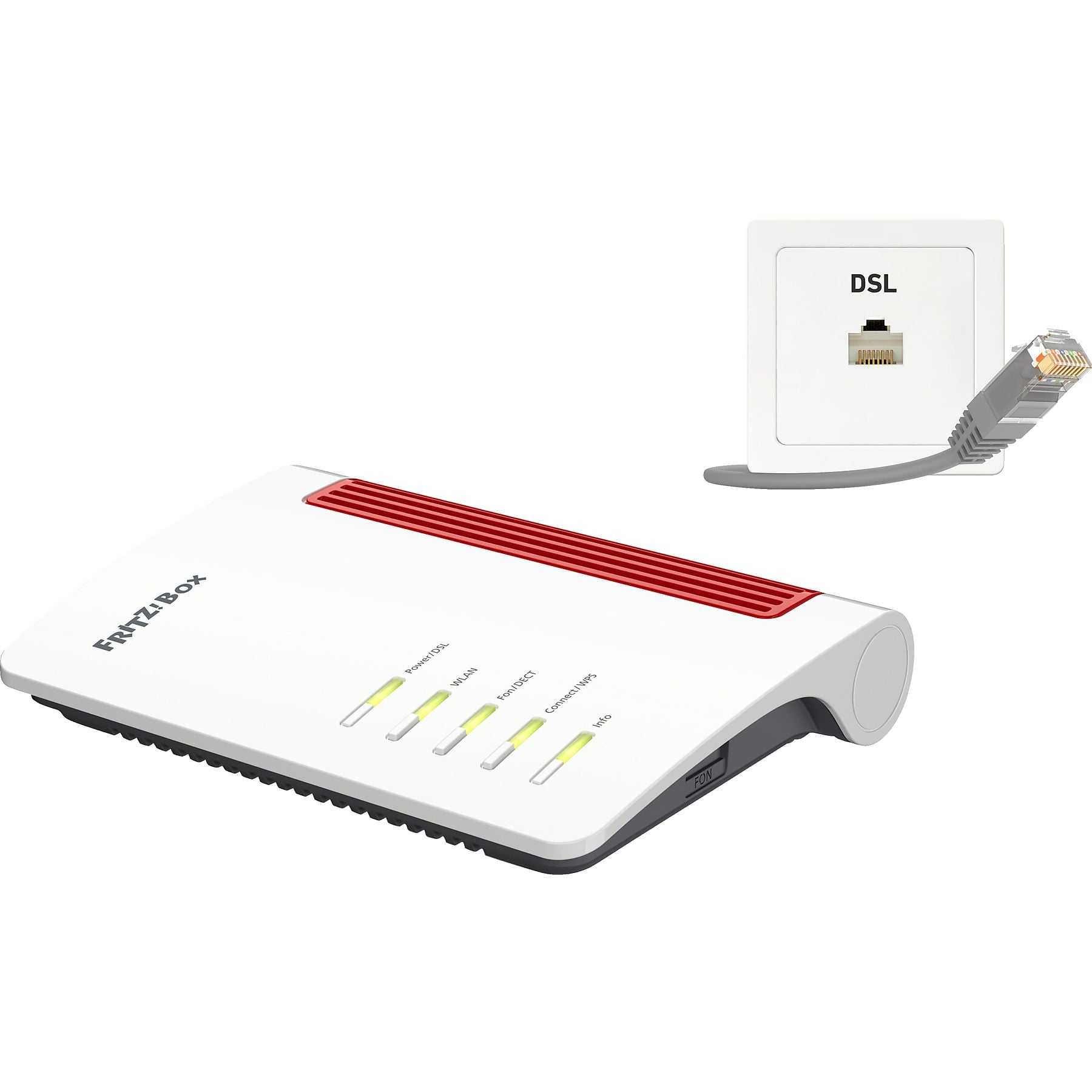

| DSL standards | (V)DSL up to 300 MBit/s (Supervectoring 35b), ADSL2+, for all IP-based DSL connections |
| WAN Alternative | Router operation via WAN (Gigabit) to cable or fiber modem (ONT) |
| Mobile fallback | Via USB 2.0 – connection of an LTE/5G mobile broadband stick possible (fail-safe) |
| Remote access / VPN | MyFRITZ! (free, secure), VPN with WireGuard and IPSec |
| WLAN | |
| WLAN standards | Wi‑Fi 6 (802.11ax), backward compatible with 802.11ac/n/g/b/a, 3×3 MIMO (5 GHz), 2×2 MIMO (2.4 GHz) |
| Max. data rate (5 GHz) | up to 1,800 MBit/s (Wi‑Fi 6) |
| Max. data rate (2.4 GHz) | up to 600 MBit/s (Wi‑Fi 6) |
| WLAN Mesh | Yes (FRITZ!Mesh – intelligent, seamless with repeaters and Powerline) |
| Encryption / Guest access | WPA3/WPA2, WPS button, separate WLAN guest access with splash page, WLAN Eco mode |

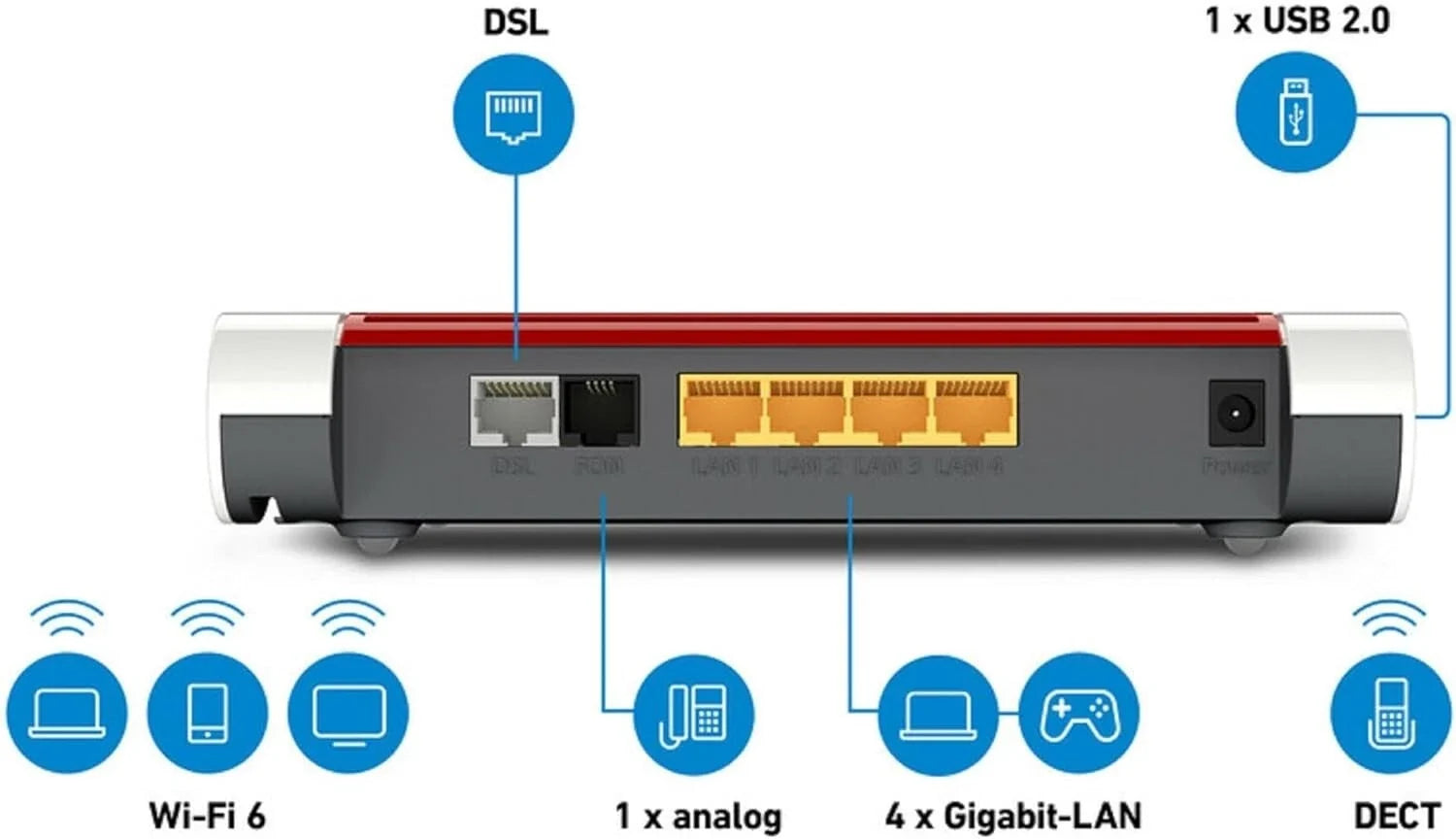

| Connections | |
| LAN | 4 × Gigabit LAN (10/100/1000 MBit/s, one alternatively configurable as WAN) |
| USB | 1 × USB 2.0 (for storage (NAS), printer, mobile broadband stick) |
| Telephone (analog) | 1 × TAE/RJ11 (for analog telephone, answering machine or fax) |
| DECT Base Station | Integrated DECT base station for up to 6 cordless phones (e.g. FRITZ!Fon) and Smart Home (FRITZ!DECT) |
| Telephony & Smart Home | |
| Telephone system | VoIP telephone system for analog, DECT and IP phones, 5 answering machines (email forwarding), HD telephony, online phone books (Google, Apple, CardDAV), fax function, call forwarding, blocking, three-way conferencing |
| DECT Smart Home | Control of FRITZ!DECT radiator thermostats, smart plugs, buttons, LED lamps, automation with schedules, scenarios and if-then routines |
| Multimedia | |
| NAS / Media server | FRITZ!NAS (central USB storage for all devices), media server (DLNA/UPnP AV) for music, pictures, movies, optimized for IPTV, video and music streaming |
| Security & Convenience | |
| Firewall & Filter | Stateful Packet Inspection, NAT with port forwarding, parental control (time budget, youth protection filter, device lock), Wake on LAN, Push service emails, diagnostic tool, auto-update |
| Operating system (FRITZ!OS) | Intuitive browser and app interface, free FRITZ!Apps, context-sensitive online help, optional energy-saving mode, free updates with new functions |
| Energy Efficiency | |
| Average power consumption | approx. 6 W (peak load approx. 12 W) |
| Power supply (included) | External plug-in power supply (12 V / 1.5 A) |
| Scope of Delivery | |
| Included | FRITZ!Box 7530 AX, power supply, DSL connection cable (4 m), LAN cable (1.5 m), installation guide |
